Description

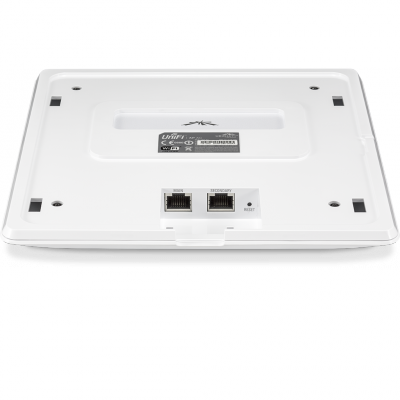

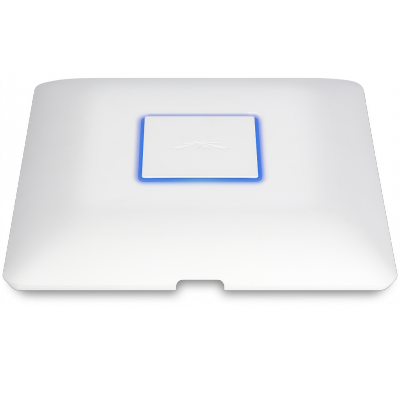

The fastest UniFi model supports 802.11a/b/g/n/ac and speeds of up to 1300 Mbps in the 5 GHz radio band and up to 450 Mbps in the 2.4 GHz radio band. The UAP-AC offers simultaneous dual-band operation with 3×3 MIMO technology for each band. It has a range of up to 122 m (400 ft) and two Gigabit Ethernet ports. Aesthetic industrial design with unique front LED provisioning ring. Sleek wall-mountable and ceiling tile mountable design (all accessories included).
Scalable and Unified Enterprise WiFi Management
The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed.
The UniFi Enterprise WiFi System includes the UniFi Controller software which can be easily accessed through any standard web browser. The software installs on any Windows, Mac, or Linux PC and can be run on-premise, in your private cloud or in a public cloud service. Using the UniFi Controller software, an Enterprise WiFi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, guest/hot-spot management, mobile roaming and advanced security options are all seamlessly integrated.
The UniFi controller software is included with each access point. There are no additional software license or subscription costs required to use the UniFi controller.
| UNIFI AP-AC | |
|---|---|
| Dimensions | 200 x 204 x 27 mm |
| Weight | 508 g (566 g with Mounting Kits) |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Buttons | Reset |
| Wifi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (48V), 802.3at Supported (Supported Voltage Range: 39 to 57VDC) |
| Power Supply | 48V, 0.5A PoE Gigabit Adapter Included |
| Maximum Power Consumption | 22 W |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i |
| Certifications | CE, FCC, IC |

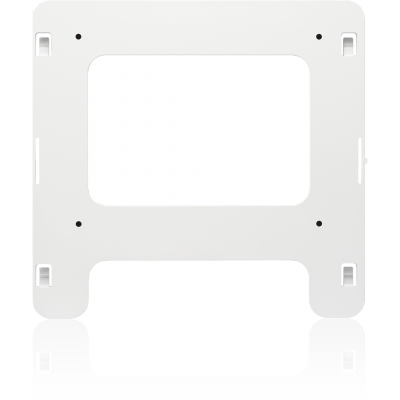

| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 55°C |
| Operating Humidity | 5 – 80% Condensing |
| ANTENNAS | |
| 2.4 GHz | 3 Integrated (Supports 3×3 MIMO with Spatial Diversity) |
| 5 GHz | 3 Integrated (Supports 3×3 MIMO with Spatial Diversity) |
| MAX TX POWER | |
| 2.4 GHz | 28 dBm |
| 5 Ghz | 28 dBm |
| ADVANCED TRAFFIC MANAGEMENT | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (5 GHz 2×2) | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11n (2.4 GHz 3×3) | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11ac, 5 GHz (3×3) | 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
